Tern Vektron Q9 Bosch Active Plus 400w/h

Description

THE ACCELERATOR

  • New colors and updated styling
  • Upgraded to the Bosch Active Line Plus electric drivetrain for up to 270% assistance and 50 Nm of torque

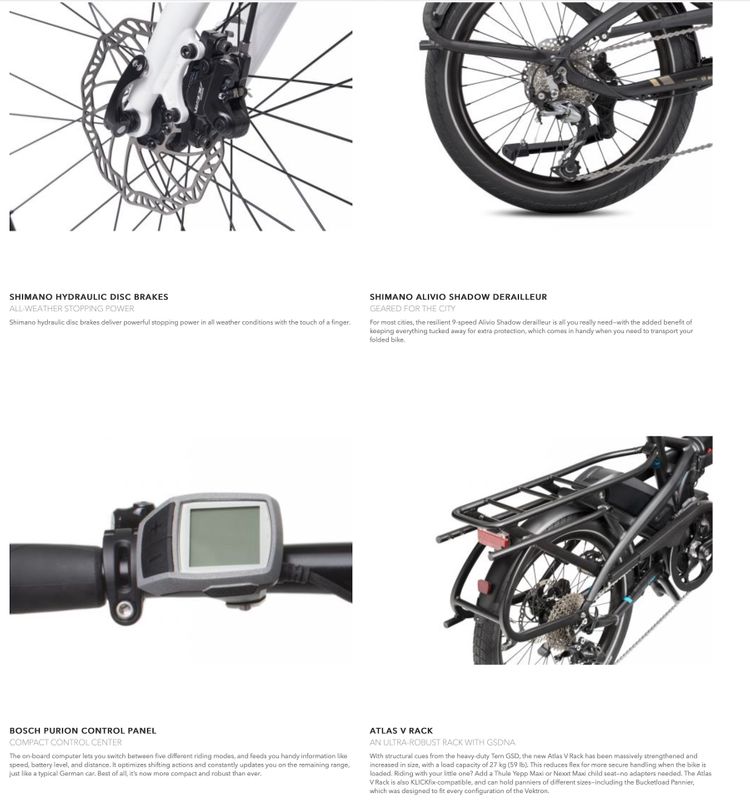

  • Hydraulic disc brakes for all-weather stopping power

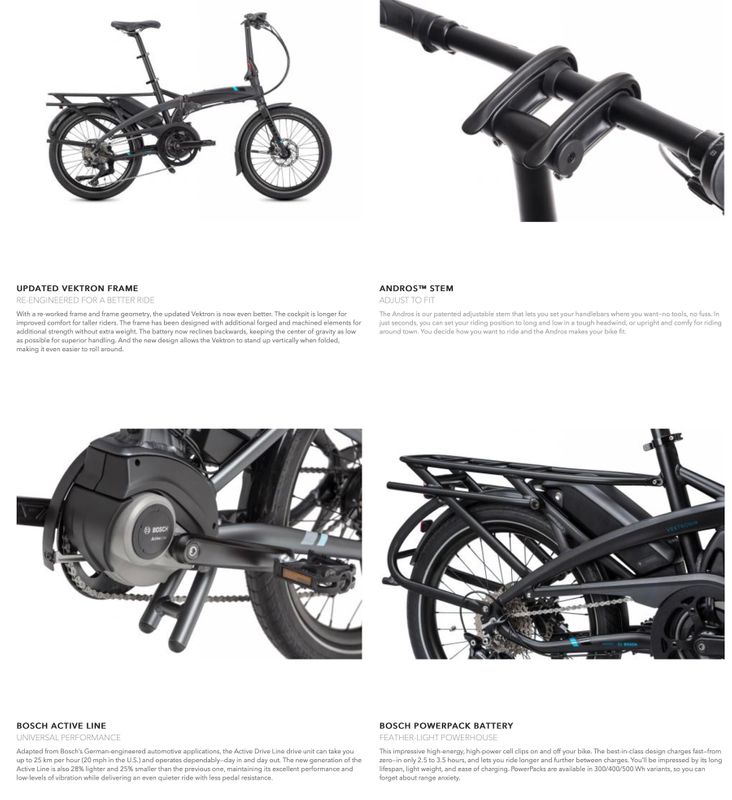

  • Updated frame with a reclining battery for a lower center of gravity and better ride
  • Frame passed strict European safety standards for pedal-assist e-bikes, having been certified as EN15194-compliant by EFBE Prüftechnik

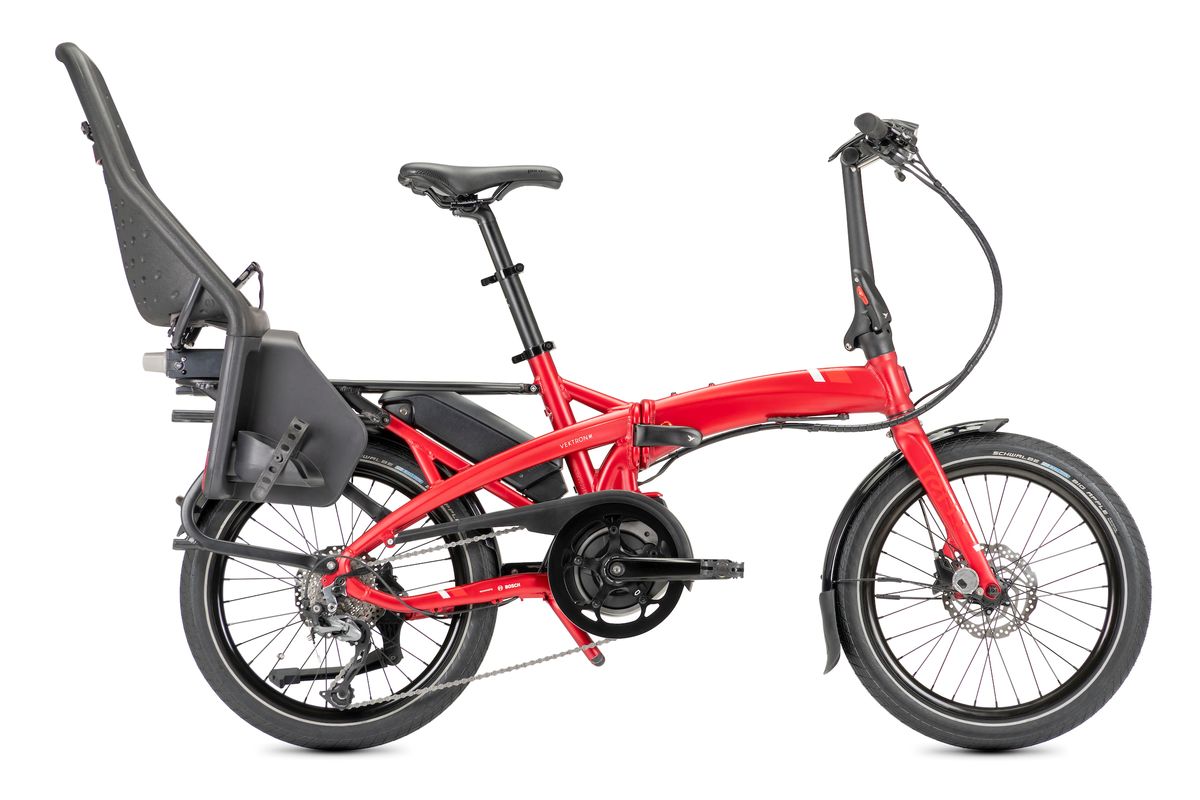

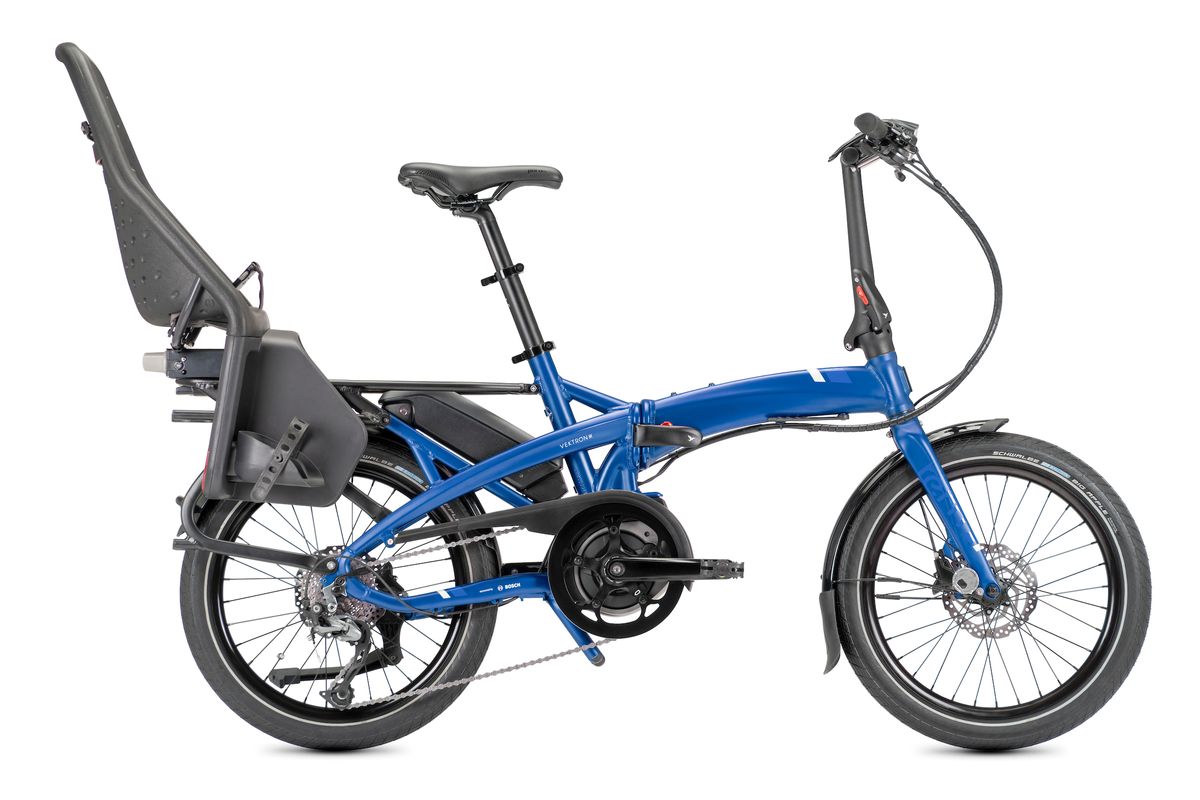

  • Integrated Atlas V Rack™ works seamlessly with Thule Yepp Maxi and Dash® RM child seats—no adapters needed
  • Resizes in seconds to fit riders 147 – 195 cm (4’10” – 6’5”) so a single bike can be shared by the family

SPECIFICATIONS

GENERAL INFO

SPEEDS 1 x 9
WEIGHT 21.9 kg
GEAR INCHES 2.65 - 7.72 m

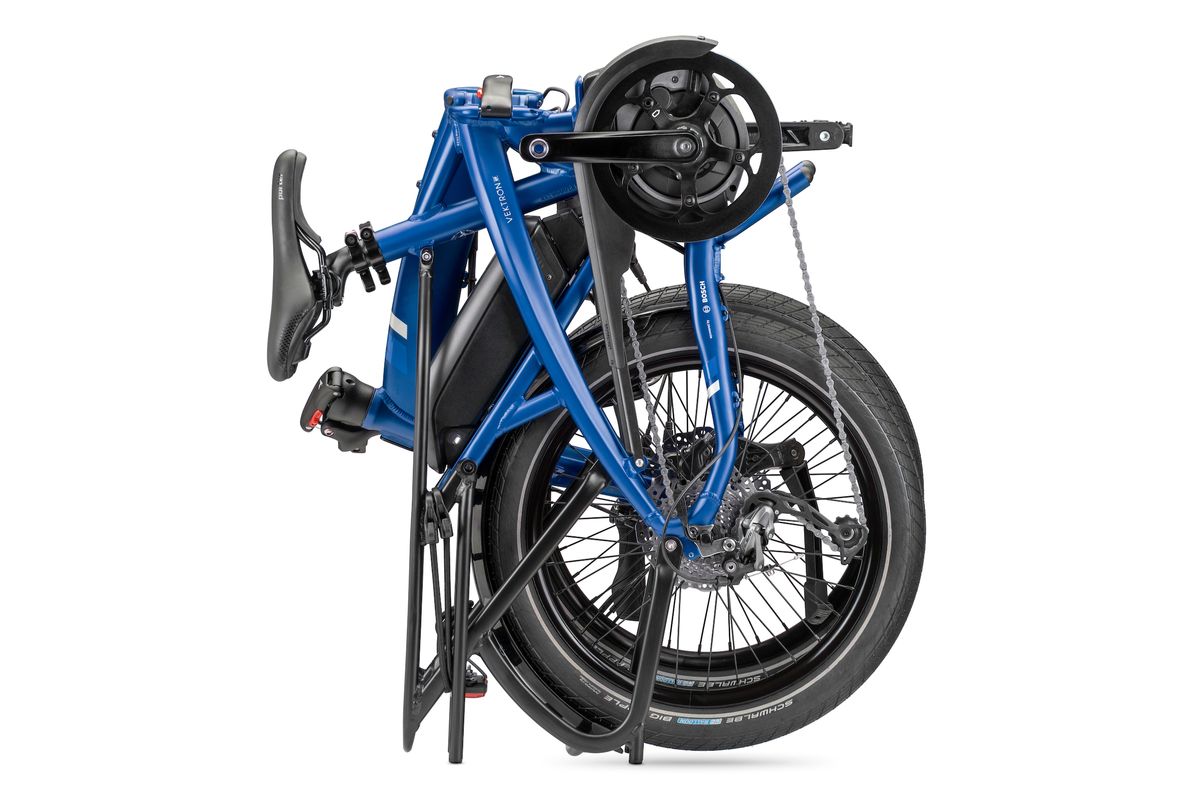

FOLDING SIZE 42 × 86 × 68.5 cm
FOLDING TIME 10 sec
FRAME SIZES One size
DISTANCE (SEATPOST TO HANDLEBAR) 62 - 69 cm
DISTANCE (SADDLE TO PEDAL) 67 - 110 cm
SUGGESTED RIDER HEIGHT 147 - 195 cm
MAX GROSS VEHICLE WEIGHT 125 kg
MAX RIDER WEIGHT 105 kg

FRAME

FRAME Tern Vektron, hydroformed 7005-AL, OCL+ joint, 3 patented technologies
FORK Tern Tarsus, 6061-Al, hydroformed

COCKPIT

HANDLEPOST Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 320 mm
STEM Tern Andros, adjustable, forged construction, patented technology
HEADSET Tern Flux, cartridge bearings, Physis integrated
HANDLEBAR Flat bar, 6061-AL, Tern Andros adapted
GRIPS/BAR TAPE Velo ergonomic, lock-on
SADDLE Tern Porter, patented GripPad design
SEATPOST Tern Telescope, 34.9/30.9 mm, 2014-AL
SEATPOST CLAMP Tern Collar, 6061-AL, 2pc

BRAKES

FRONT BRAKE Shimano, hydraulic disc
REAR BRAKE Shimano, hydraulic disc
BRAKE LEVERS Shimano, hydraulic disc
BRAKE CABLE & HOUSING Shimano, hydraulic disc

WHEELS

FRONT HUB Shimano disc
REAR HUB Shimano disc
SPOKES AND NIPPLES Stainless steel
RIMS Kinetix Comp, for disc
TIRES Schwalbe Big Apple, 55-406, puncture protection, Reflex

TRANSMISSION

SHIFTER(S) Shimano Alivio, 1 x 9 spd, trigger
REAR DERAILLEUR Shimano Alivio Shadow
CRANKSET Tern custom, forged 6061-AL crankarm
CASSETTE/FREEWHEEL Shimano 11-32T, 9 spd
BOTTOM BRACKET Motor integrated
CHAIN 9 spd, DHT for eBike, GST corrosion resistant coating
PEDALS MKS EZY
SHIFTER CABLE & HOUSING Jagwire LEX-SL, slick treatment, alloy ferrules

E-SYSTEM

MOTOR Bosch Active Line Plus, 270% Assist, 50 Nm Torque, max speed 32 kph
BATTERY Bosch PowerPack 400Wh
DISPLAY Bosch Purion, 4 mode selectable, walk assist
RANGE 400 Wh: 55 -110 km
CHARGER 100-240V, 4A

BELLS & WHISTLES

BELL Aluminum
CHAINGUARD SKS Chainblade
KICKSTAND URSUS, rear mount
CLIP SYSTEM Magnetix 3.0
LUGGAGE SOCKET Yes
FRONT LIGHT Tern Valo Direct, 190 lumens
REAR LIGHT Herrmans H-Trace, for eBike
FENDERS SplashGuard, stainless hardware
RACK(S) Atlas V Rack™, integrated 8 point mounting; Max load weight: 27 kg



*Note: These are our standard model specifications. The bike's weight and folded dimension may not include racks and fenders. We do our best to ensure that the specifications listed here accurately reflect the exact parts found on our production bikes. However, component changes do occur for various reasons and there may be brief delays on site updates. We reserve the right to make component changes without prior notification, which may cause discrepancies with the information listed on the web.

Code Product Name Stock Your Price Quantity
BKTV330

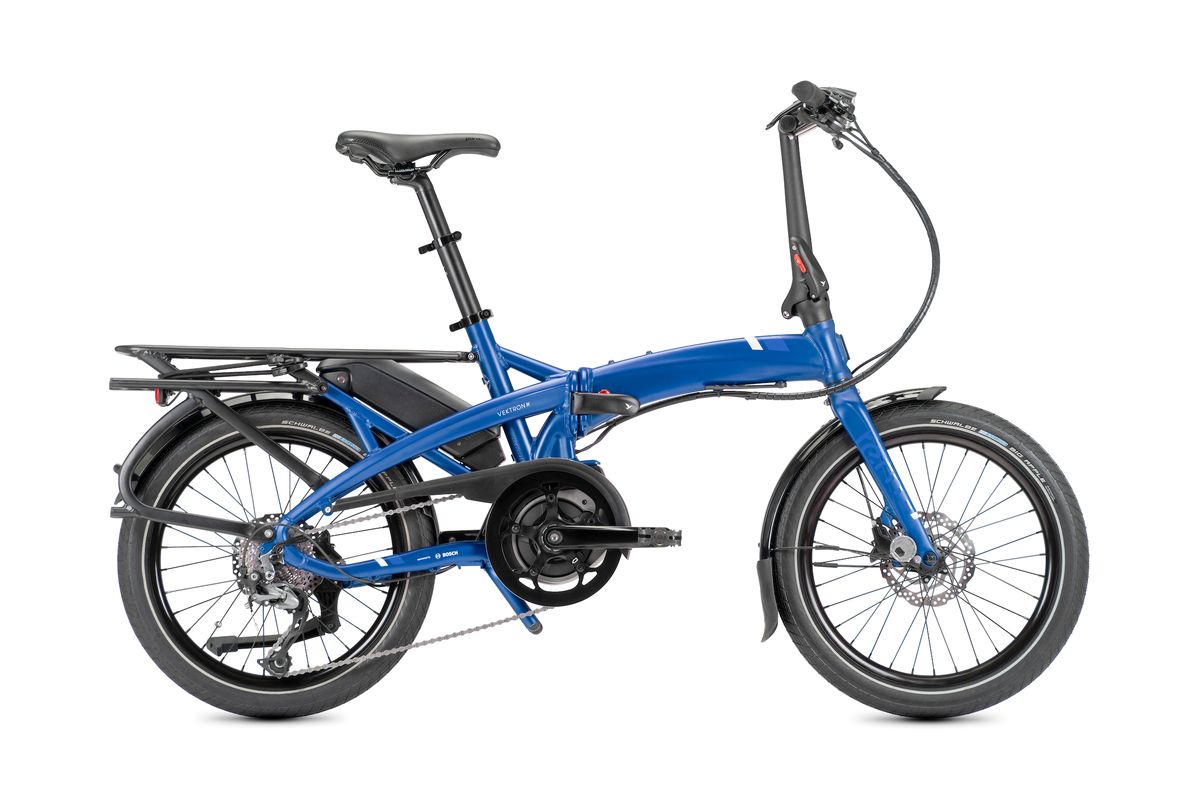

Tern E-Bike Vektron Q9 20" Blue Blue/Silver 9s Bosch Active Plus 400wh 32kph
Stock Level:
In Stock
Contact your local dealer for pricing and availability
BKTV331

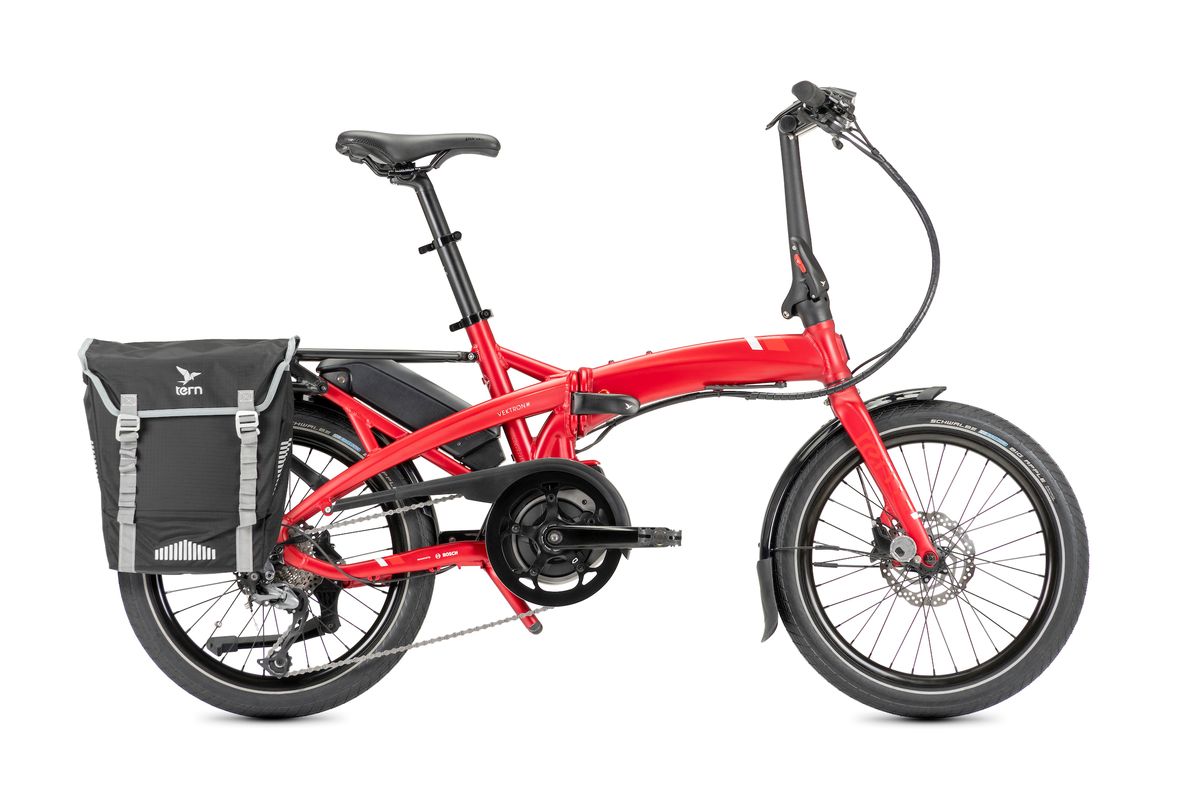

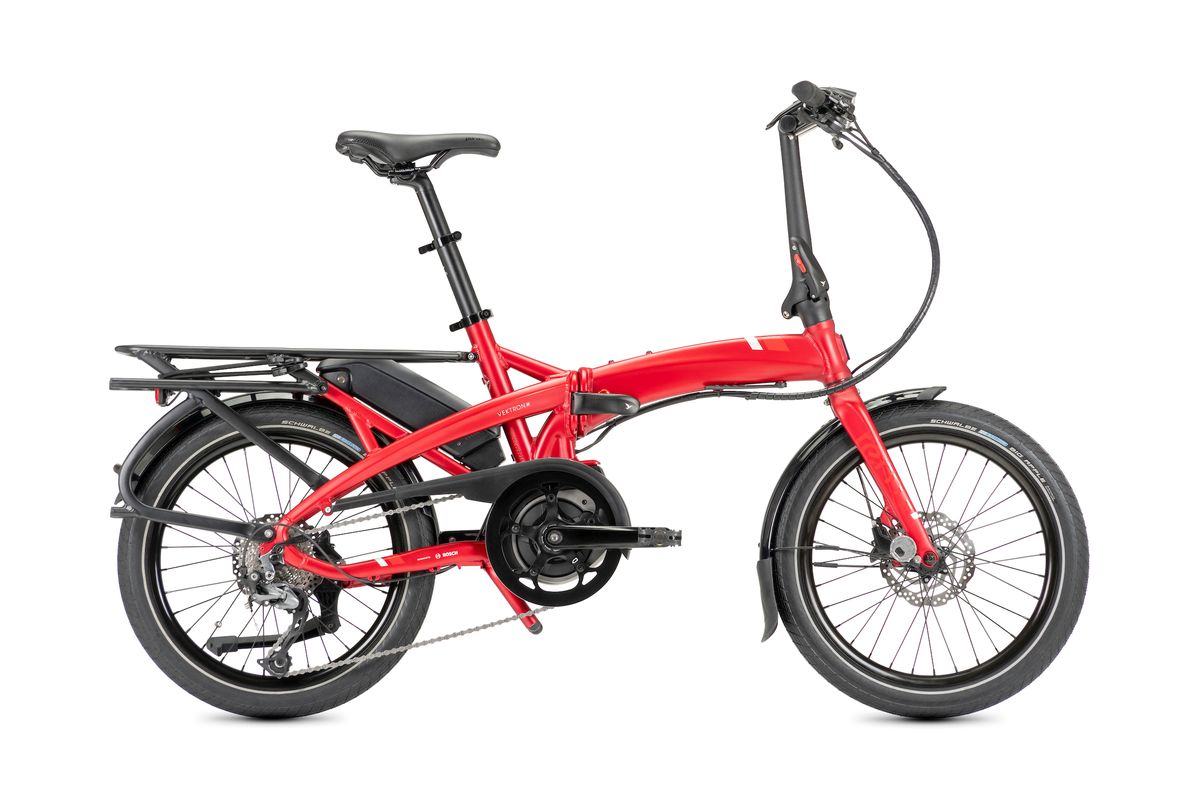

Tern E-Bike Vektron Q9 20" Red Red/Silver 9s Bosch Active Plus 400wh 32kph
Stock Level:
In Stock
Contact your local dealer for pricing and availability
