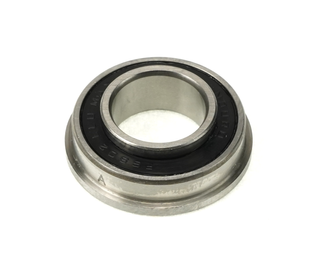

Enduro Max Bearing F6902 EB 15 x 28/30.5 x 7/9.5

Description

F6902 LLU MAX-EB - ABEC-3, Flanged, Extended Race, Radial Bearing (C3 clearance) - 15mm x 28mm x 7/9.5mm -

Enduro Bearings pioneered MAX type bearings over 20 years ago for bicycles to address the challenges associated with mountain bike pivots. MAX-type bearings provide 35-40% more load capacity than standard radial bearings by utilizing a special design where the maximum number of balls are inserted into the bearing, via a custom ground slot in the races. The additional balls, combined with deep race grooves in these bearings provide greater lateral support for the twisting and multi-directional forces associated with mountain bike pivots. This ABEC-3 bearing features deep-groove design races, with Grade 10 balls and full-contact, double-lip, labyrinth (LLU) seals for maximum protection against the elements, while keeping the 90% fill of Almagard extra high pressure grease inside. The flanged design ensures precise insertion into through-holes in swing-arms and suspension linkages while the extended inner race eliminates the need for extra spacers to connect suspension linkages.

This bearing has been used as a suspension pivot bearing by Yeti bikes.

The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD-15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls and feature dual-lip seals that ride in a micro-groove creating a full labyrinth to provide superior protection against the elements.

Static load - 812lbf / 3.61kN
Weight - 15.9g

Code Product Name Stock Your Price Quantity
BEEN1178
Enduro Flanged Bearing MAX F6902-EB LLU MAX-EB 15 x 28/30.5 x 7/9.5 mm Extended Inner Race (Flange Side) F6902LLUMAX-EB
Stock Level:
In Stock
Contact your local dealer for pricing and availability
