Enduro Max Radial Bearing KP5A

Description

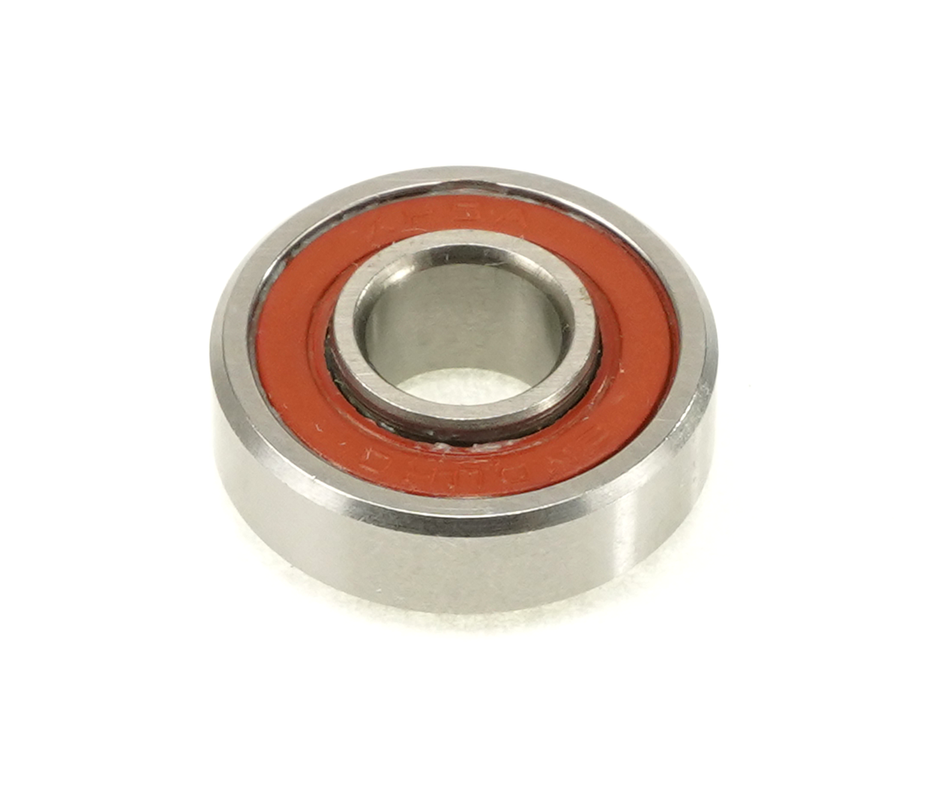

KP5A MAX-Design, Extended Inner Race, ABEC-3, radial suspension bearing - 5/16 x 13/16 x 9/32 -

Enduro Bearings pioneered MAX type bearings over 20 years ago for bicycles to address the challenges associated with mountain bike pivots. MAX-type bearings provide 35-40% more load capacity than standard radial bearings by utilizing a special design where the maximum number of balls are inserted into the bearing, via a custom ground slot in the races. The additional balls, combined with deep race grooves in these bearings provide greater lateral support for the twisting and multi-directional forces associated with mountain bike pivots. This ABEC-3 bearing features deep-groove design races, with Grade 10 balls and dual rubber seals for maximum protection against the elements, while keeping the 90% fill of Almagard extra high pressure grease inside. This bearing features a double-extended inner race that eliminates the need for extra spacers to properly connect the linkage.

The primary use for this bearing is as a suspension pivot bearing.

The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD-15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls and feature dual-lip seals that ride in a micro-groove creating a full labyrinth to provide superior protection against the elements.

Static load - 395lbf / 1.75kN
Weight - 9.69g

Code Product Name Stock Your Price Quantity
BEEN1324
Enduro Standard Inch Size Radial Bearing MAX KP5A 5/16" (7.94mm) x 13/16" (20.64) x 9/32" (5.9 outer 7.5 inner)
Stock Level:
In Stock
Contact your local dealer for pricing and availability
