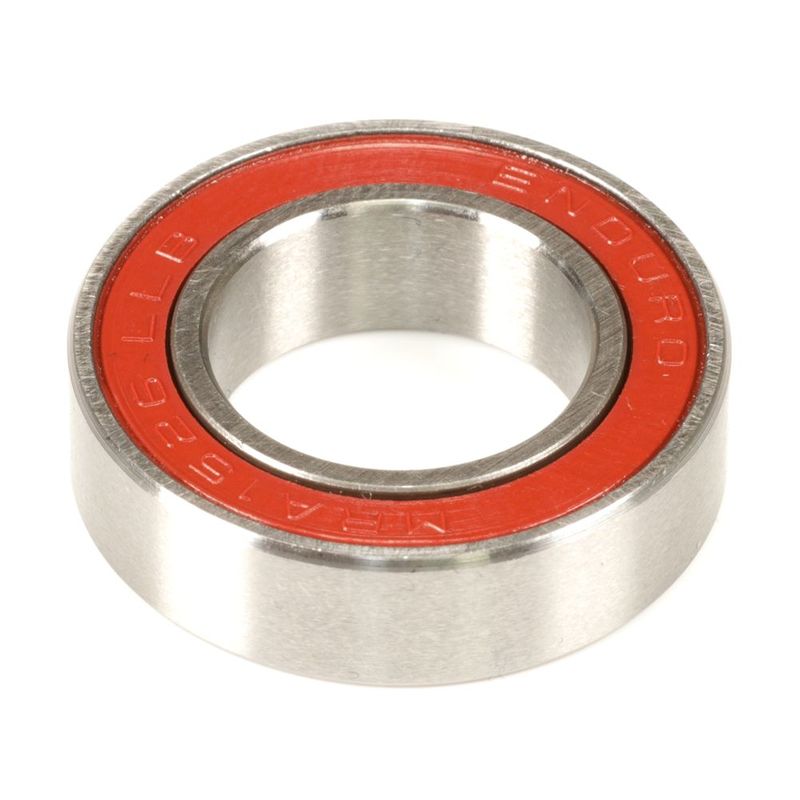

Enduro Max Angular Contact Bearing MRA1526

Description

MRA 15267 LLU MAX - Angular-Contact, MAX-Design, ABEC-3, radial suspension bearing - 15mm x 26mm x 7mm -

Enduro bearings pioneered MAX type bearings over 20 years ago for bicycles to address the challenges associated with mountain bike pivots. These bearings have 35-40% more load capacity than standard radial bearings by utilizing a special design where the maximum number of balls are inserted into the bearing. The additional balls, combined with deep race grooves in these bearings for greater lateral support for the twisting and multi-directional forces associated with mountain bike pivots. This ABEC-3 bearing features deep-groove design races, with grade 10 balls and full-contact, full-contact, dual-lip labyrinth (LLU) seals for maximum protection against the elements, while keeping the 90% fill of Almagard extra high pressure grease inside. When properly installed and adjusted, Enduro Angular Contact (A/C) bearings engage all of the bearing's balls to spread the force over a larger surface area, minimizing wear and increasing bearing life.

This bearing has been used exclusively as a suspension pivot bearing.

The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD-15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls possible. All of our standard bearings feature dual-lip seals that ride in a micro-groove creating a full labyrinth to provide superior protection against the elements.

Static load - 605lbf / 2.69kN
Weight - 12.63g

Code Product Name Stock Your Price Quantity
BEEN1350
Enduro Angular Contact Bearing MAX MRA 15267 LLU MAX 15 x 26 x 7 mm
Stock Level:
In Stock
Contact your local dealer for pricing and availability
