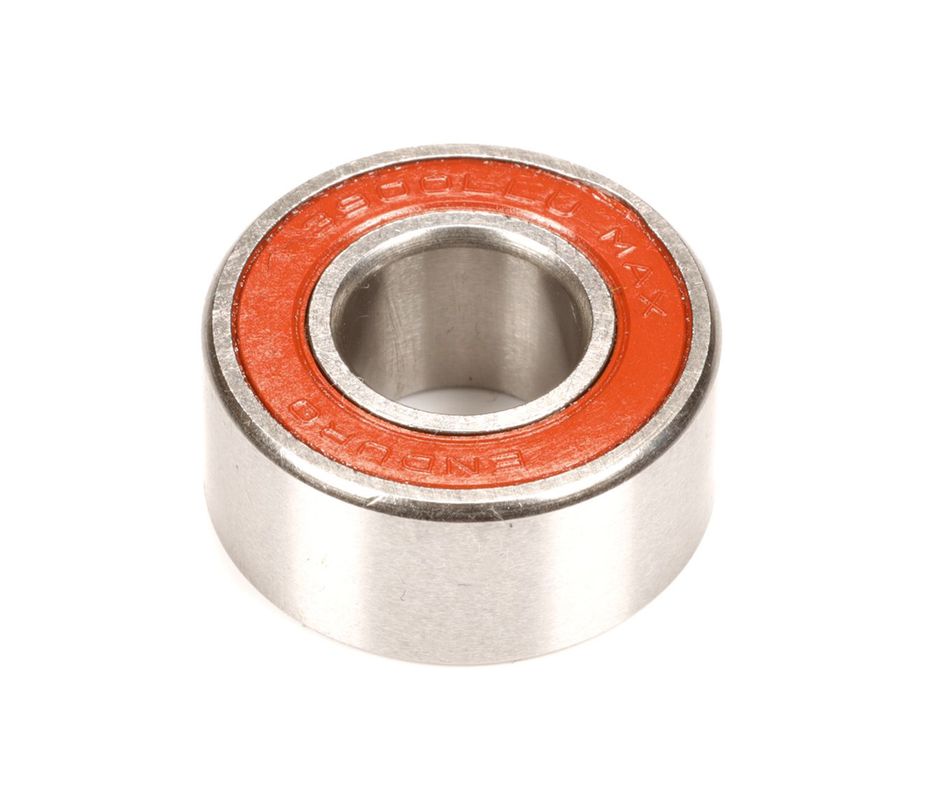

Enduro Max Double Row Bearing 3900 10 x 22 x 10

Description

3900 LLU MAX - MAX-Design, Double Row, ABEC-3, radial suspension bearing - 10mm x 22mm x 10mm -

Enduro Bearings pioneered MAX type bearings over 20 years ago for bicycles to address the challenges associated with mountain bike pivots. MAX bearings provide 35-40% more load capacity than standard radial bearings by employing with a special design where the maximum number of balls (full-complement) are inserted into the bearing, via a custom ground slot in the races. The race grooves are also deeper on these bearings to provide increased lateral support to counteract the twisting and multi-directional forces associated with mountain bike pivots. This MAX-type, Double-Row, ABEC-3 bearing features deep-groove design races, with Grade 10 balls and full-contact, double-lip, labyrinth (LLU) seals for maximum protection against the elements, while keeping the 90% fill of Almagard extra high pressure grease inside. The double-row design greatly reduces flex in the suspension linkage while doubling the bearing contact area.

This bearing is most commonly used as a suspension pivot bearing.

The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD-15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls and feature dual-lip seals that ride in a micro-groove creating a full labyrinth to provide superior protection against the elements.

Static load - 953lbf / 4.24kN
Weight - 16.87g

Code Product Name Stock Your Price Quantity
BEEN1376
Enduro Double Row Bearing MAX 3900 LLU MAX 10 x 22 x 10 mm
Stock Level:
In Stock
Contact your local dealer for pricing and availability
