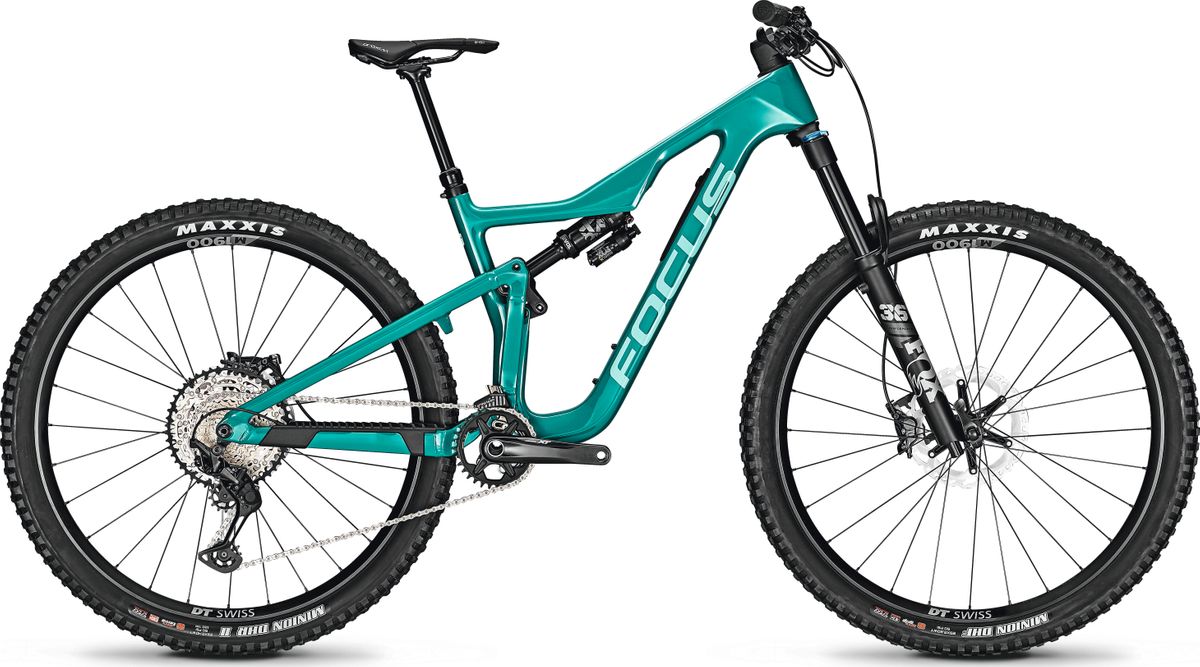

2023 Focus JAM 8.9

Description

  • LIGHT CARBON FRAME WITH FULLY INTEGRATED C.I.S. CABLE ROUTING AND I.C.S. TOOL BAG INTEGRATION
  • 150 MM TRAVEL WITH NEW F.O.L.D. KINEMATICS OPTIMIZED FOR MORE PROGRESSION: FOX 36 PERFORMANCE SUSPENSION FORK AND FLOAT X ENDURO REAR SHOCK
  • HIGH PRECISION AND EXTREME RELIABILITY: SHIMANO XT 1X12 SHIFTING AND STRONG SHIMANO XT 4-PISTON BRAKES

MAKES THE MOUNTAINS YOUR PLAYGROUND

OPTIMIZED KINEMATICS FOR STRONG PROGRESSION

With the upgrade of our well-known F.O.L.D. kinematics, your JAM is ready to shred even more. We kept the well-liked sensitivity of the F.O.L.D. but changed the positioning of our kinematics within the frame for strong bottom-out resistance. The characteristics are completely progressive which results in a chassis that offers a lot of stability in rough terrain. This allows you to handle any trail while the chassis still provides comfort for long laps. Furthermore, the lower standover of the JAM gives you more space to play on the trail.

FOR YOUR INNER CHILD

The JAM is made for your inner child: Playful and intuitive you get the most fun out of every ride. The geometry is well-balanced for your rides in tough terrain: An agile handling merges with a lot of safety resources of the chassis providing confidence in rough downhills. You are perfectly-seated in the middle of the lightweight carbon bikes to be in control of any situation and to easily pedal up all the steep hills on your ride. The FLIP CHIP at your JAM's linkage can be used to adjust your geometry to an even more aggressive riding style. The small adjustment of the head angle from 65,5° to 65° changes your whole set-up making it even more downhill-oriented.

INTEGRATED AND LIGHTWEIGHT

It's all about the details: In the down tube of the lightweight carbon bike, you can store your essentials thanks to our I.C.S. (Internal Compartment Solution) technology. One easy click and a cover on the down tube opens up. Within the down tube, your equipment fits in the integrated tool bag that you can easily take out if necessary. Furthermore, the specially developed C.I.S. (Cockpit Integration Solution) design ensures a clean cockpit and constantly seamless shifting and braking. All cables run from the handlebar into the stem and through the headset into the frame.

FRAME Carbon front triangle, 7005 Aluminum rear triangle, 150mm F.O.L.D. GEN2 kinematic, PF92 BB, 148x12 thru axle, internal cable routing, Post Mount 180 mm
FRAME MATERIAL Carbon / Aluminium
FORK FOX 36 Float Performance 29, Grip 3-Position, 110x15 mm, 44 mm rake, 150 mm travel
TRAVEL FORK 150 mm
SHOCK FOX Float X Performance, 210/55 mm, hardware: 25.0 x 8.0 mm, no Bushing
SHIFTER Shimano Deore XT M8100, 12-speed
REAR DERAILLEUR Shimano Deore XT M8100, 12-speed
SPROCKET Shimano SLX M7100, 12-speed
CHAIN Shimano SLX CN-M7100
CRANKSET Shimano Deore XT M8120, 12-speed
TRANSMISSION OF DRIVE Front: 32T, Rear: 10-50T
BOTTOM BRACKET Pressfit
HANDLEBAR RaceFace Chester 35, aluminium, 780mm, rise: 35mm, backsweep: 8°
STEM FOCUS C.I.S. integrated, 50 mm, 0°, 35 mm, aluminium
HEADSET ACROS ZS56/ZS56, FOCUS C.I.S. Integrated
SADDLE Proxim W350
SEATPOST Post Moderne dropper post PM-171, 31.6 mm
BRAKES Shimano XT M8120, 4 piston
BRAKE LEVER Shimano XT M8120, 4 piston
BRAKE Disc
WHEELSET DT SWISS M1900, 622-30, 148x12 mm / 110x15 mm
TIRES Maxxis Minion DHF 2.5 WT 3C Grip EXO TR
REAR TIRE Maxxis Minion DHR II 2.4 3C EXO+ TR,Maxxis Minion DHR II 2.4 Dual EXO TR
GEARS 12
BIKE WEIGHT 15.80 kg
SEATPOST TYPE Dropper seatpost
CHAINRINGS 1x
SIZE S, M, L, XL



* Subject to technical modification without notice. Errors and omissions excepted.

** Weight in size M, of standard specification and without pedals.
