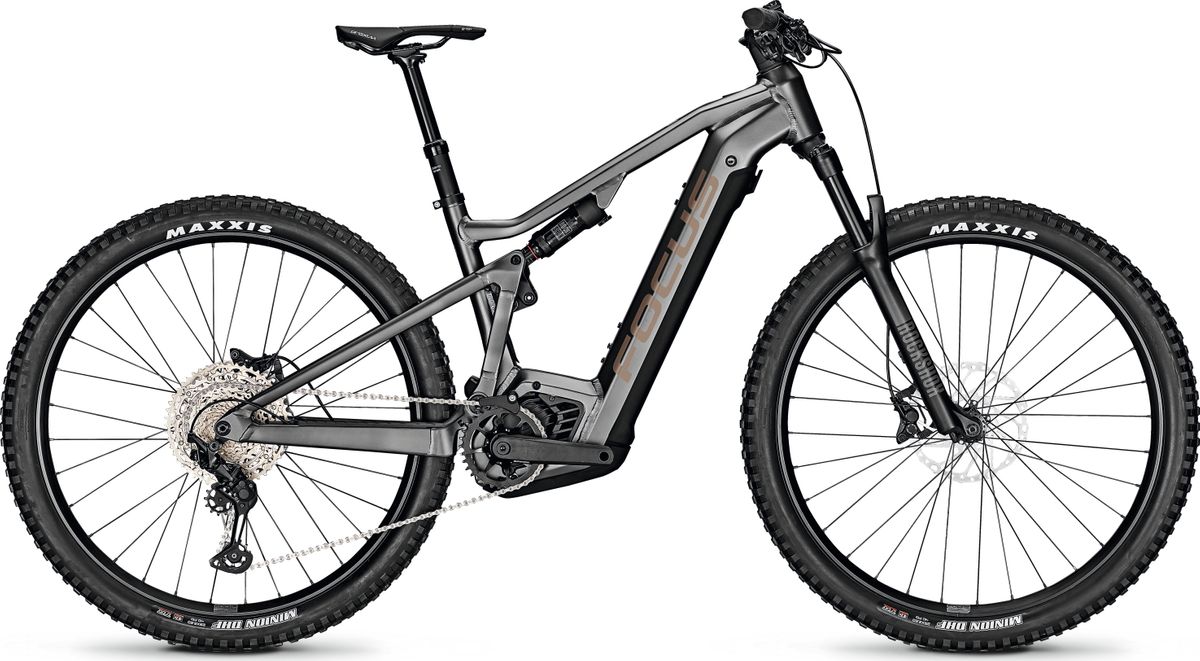

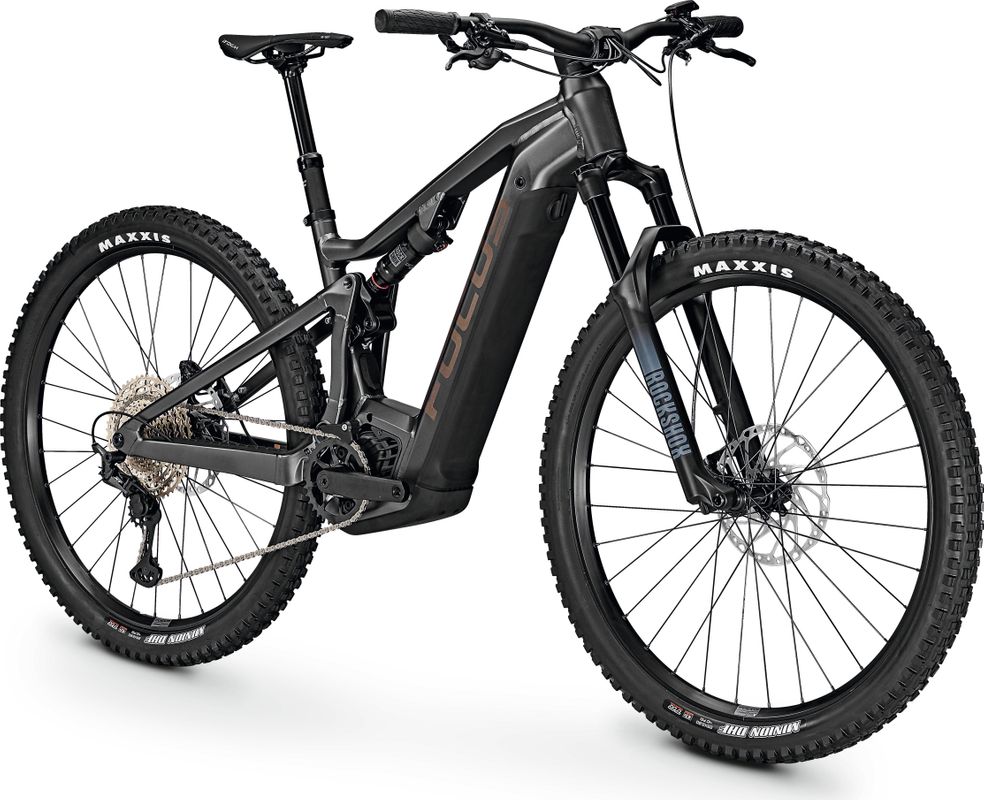

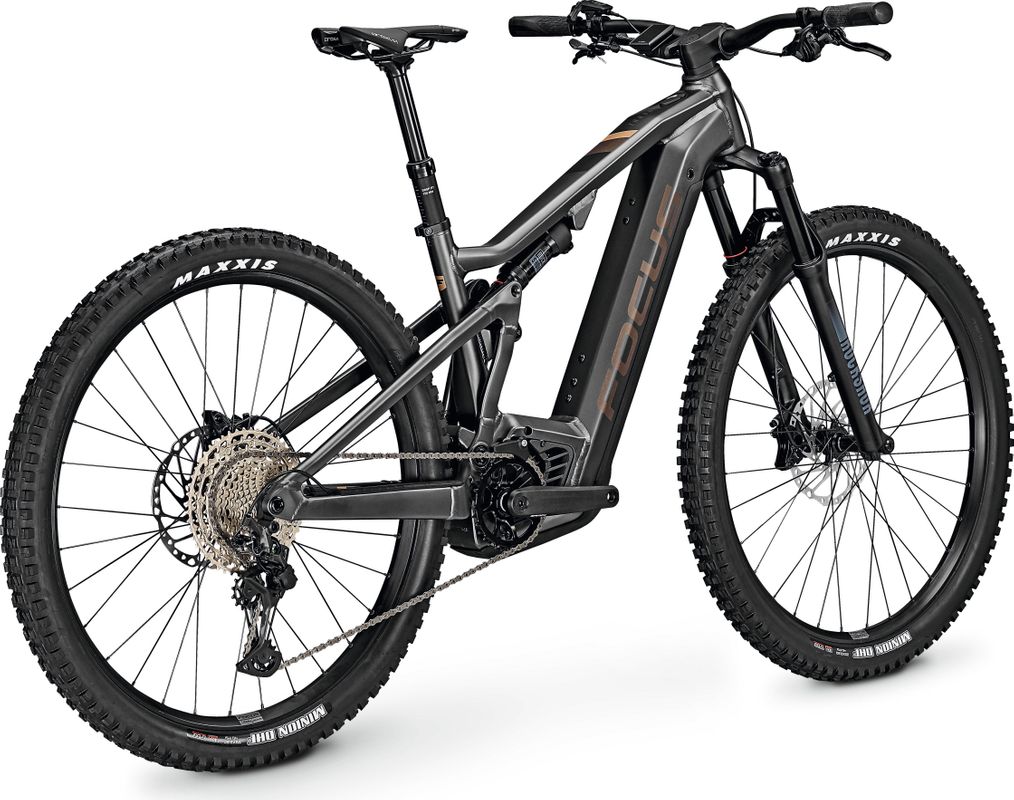

2023 Focus THRON2 6.8 BOSCH
Description
- CUSTOMISABLE BOSCH SMART SYSTEM WITH PERFORMANCE CX E-DRIVE, KIOX 300 DISPLAY AND 750 (SIZE S: 625) WH BATTERY
- 130 MM TRAVEL WITH F.O.L.D. KINEMATICS: ROCKSHOX 35 GOLD SUSPENSION FORK AND DELUXE SELECT REAR SHOCK
- RELIABLE UND PRECISE SHIMANO XT COMPONENTS AND STRONG 4-PISTON BRAKES
MORE THAN JUST TRAILS
SUPER POWERFUL AND DYNAMIC E-MOTOR PLUS INTEGRATED BATTERY WITH RECORD-BREAKING RANGE
The efficient Bosch Performance CX e-drive (Gen. 4) supports your ride up to 25 km/h with powerful 85 Nm. The strongest e-motor of Bosch is perfectly integrated, the THRON² rides well-balanced. In eMTB mode, the motor support adjusts automatically to your riding power. The new 750 Wh (size S: 625 Wh) battery (smart system) delivers endless tail fun. The battery is integrated into the down tube, yet removable for charging.
FUN, COMFORT AND SAFETY IN EVERY SITUATION
The F.O.L.D. kinematics with 130 mm suspension travel absorbs all the bumps on your way. Whether it is the fast flow trail or the rough gravel route – the perfect mix of sensitivity and strong bottom-out resistance lets you enjoy all your rides. The characteristics are completely progressive which results in a chassis that offers a lot of stability making you feel safe on any terrain. Especially e-mountain bikes with the additional weight of motor and battery benefit from more progression. This allows you to handle any trail while the chassis still provides comfort for long laps. Furthermore, the lower standover of the THRON² 6.8 gives you more space to play on the trail.
DIVERSE USAGE
From trail tours through alpine terrain to your daily commute and bikepacking: anything is possible with the THRON². With certain changes to the build, you can add various features to your THRON² – depending on where your e-MTB tour is going. Additionally, a USB-C port on the top tube gives you the opportunity to charge your devices. Furthermore, the specially developed C.I.S. (Cockpit Integration Solution) design ensures a clean cockpit and constantly seamless shifting and braking. All cables run from the handlebar into the stem and through the headset into the frame.
| FRAME MATERIAL | Aluminium |
| FRAME | 7005 hydroformed aluminium, 3D forging, 130mm F.O.L.D. kinematics, 148x12 mm thru-axle, USB-C port, post mount 180 mm |
| FORK | SR Suntour Aion 35 EVO, RC-PCS 29, 110x15 mm, 44 mm rake |
| TRAVEL OF SUSPENSION FORK | 130mm |
| SHOCK | Rock Shox Deluxe Select, 210/50 mm, hardware: 25,0 x 8,0 mm, no Bushing |
| MOTOR | Bosch Performance CX Smart, 85 Nm, 250 W |
| BATTERY WATT-HOURS | 625 Wh (S), 750 Wh (M, L, XL) |
| BATTERY AMPERE HOURS | 20.8 Ah |
| DISPLAY | Bosch LED Remote + Kiox 300 |
| SHIFTER | Shimano Deore XT M8100, 12-speed |
| REAR DERAILLEUR | Shimano Deore XT M8100, 12-speed |
| SPROCKET | Shimano Deore CS-M6100, 12-speed |
| CHAIN | Shimano CN-LG50 |
| CRANKSET | Samox EC40 ISIS |
| TRANSMISSION OF DRIVE | Front: 36T, Rear: 10-51T |
| BOTTOM BRACKET | Integrated in Drive Unit |
| HANDLEBAR | Aluminium, 800 mm, rise: 30 mm, backsweep: 9° |
| STEM | FOCUS C.I.S. integrated, 50 mm, 0°, 35 mm, aluminium,Aluminium, 70mm, 35degree |
| HEADSET | ACROS ZS56/ZS56 (ICR), FOCUS C.I.S. Integrated |
| SADDLE | Proxim X400 |
| SEATPOST | Post Moderne dropper post PM-214, 34.9 mm |
| BRAKE CALIPER | SRAM DB8, 4-piston, hydraulic disc brake |
| BRAKE LEVER | SRAM DB8, 4-piston, hydraulic disc brake |
| BRAKE | Disc |
| RIMS | RODI TRYP30, 30-622 |
| REAR HUB | Novatec D462SB, 12x148 mm,Novatec D462, 12x148 mm |
| FRONT HUB | Thru axle, 15x100 mm,Novatec D041, 15x110 mm |
| TIRES | Maxxis Minion DHF, 2.6 Dual EXO TR, 66-622 |
| BIKE WEIGHT INCL. BATTERY IN KG | 26,7 |
| SHIFTING TYPE | Mechanical shifting |
| SIZE | S, M, L, XL |
Speed limit for e-support in New Zealand is 32 km/h. Our e-bikes are adjusted accordingly.
* Subject to technical modification without notice. Errors and omissions excepted.
** Weight in size M, of standard specification and without pedals.
