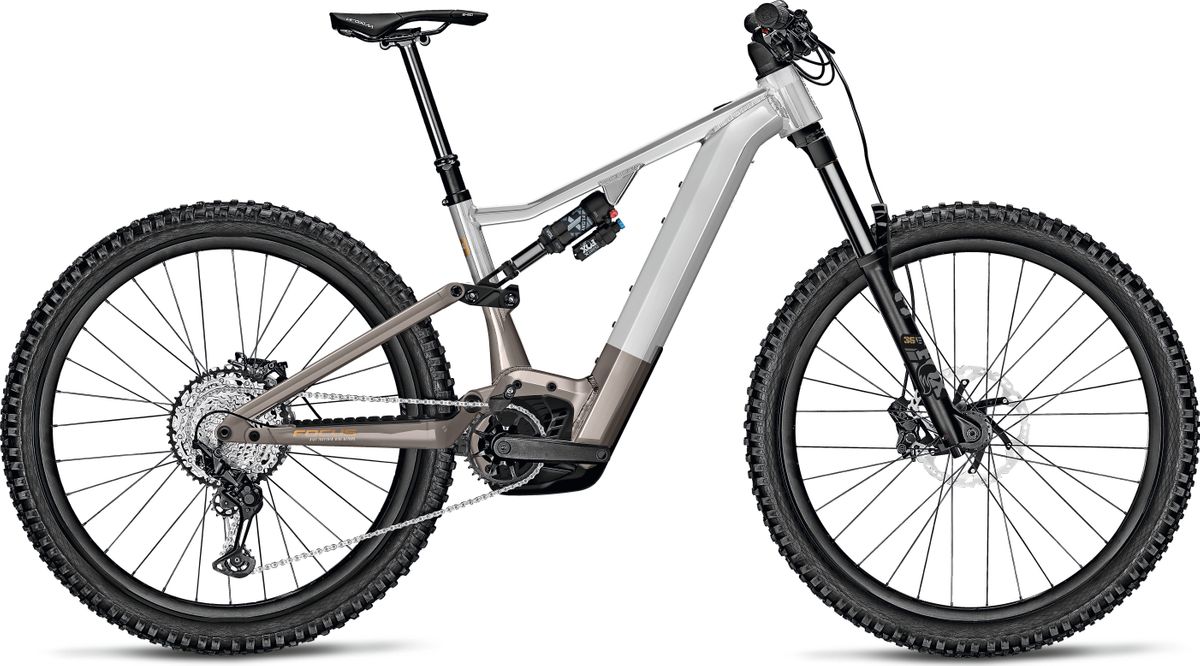

2023 Focus JAM2 6.9 BOSCH

Description

  • BOSCH SMART SYSTEM WITH PERFORMANCE CX E-DRIVE, KIOX 300 DISPLAY AND 750 WH BATTERY
  • 160 MM TRAVEL FOX 36 FACTORY SUSPENSION FORK AND 150 MM F.O.L.D. KINEMATICS MIT FOX X PERFORMANCE REAR SHOCK
  • HIGH PRECISION AND EXTREME RELIABILITY: SHIMANO XT 1X12 SHIFTING AND XT 4-PISTON BRAKES PLUS FULLY INTEGRATED C.I.S. CABLE ROUTING AND DT SWISS H1900 WHEELS

CONQUERS NEW MOUNTAINS

SUPER POWERFUL AND DYNAMIC BOSCH PERFORMANCE LINE CX E-DRIVE

Thanks to the efficient Bosch Performance Line CX system, you can ride more trails in the same time. The powerful e-drive with a torque of up to 85 Nm makes sure uphill with the JAM² 6.9 is fun as well. Even though the motor has got your back on climbs, you can still easily control your full-suspension bike, also in toughest conditions. The slide-out battery with 750 Wh can be charged via the integrated charging port at the bike’s seat tube. Alternatively, you can also remove the battery easily and fast. There is no need for any tools. Just unlock the buckle and open the cover to slide out the battery.

GEOMETRY FOR MAXIMUM FUN ON ALL TYPES OF TRAILS

Battery and drive unit are perfectly integrated into the e-MTB's frame giving the JAM² 6.9 a slim look. Further, the battery is placed as low as possible into the down tube. This frame design improves the bike's centre of gravity and makes the full suspension bike more stable on descents. The balanced geometry adds up to the e-MTB's stability. All key dimensions are evaluated carefully to match the bike’s purpose and ensure fun on all trails. The low stand-over height improves bike handling in technical terrain. By turning the headset cups, you can easily change the head angle of your JAM² 6.9 according to your riding preferences from 65.5° to 64.5°.

FULL CONTROL IN ANY SITUATION

When optimising the F.O.L.D. (FOCUS Optimised Linkage Design) of our JAM² 6.9, it was extremely important to create a reactive kinematics and suspension for full control – whether it’s a technical or flow trail, no matter if you go up or down. Wide and tacky 29" tyres improve traction on every surface, while you can always rely on strong brakes. Thanks to great brake modulation, you can reduce your speed precisely and with high confidence.

FRAME MATERIAL Aluminium
FRAME 7005 hydroformed aluminium, 3D forging, 150 mm F.O.L.D. kinematics, 148x12 mm thru axle, internal cable routing, post mount 203 mm
FORK FOX 36 Float Factory 29, Grip 2, 110 x 15 mm, 44 mm rake
TRAVEL OF SUSPENSION FORK 160 mm
SHOCK FOX Float X Performance, 210/55 mm, hardware: 25,0 x 8.0, no Bushing
MOTOR Bosch Performance CX Smart, 85 Nm, 250 W
BATTERY WATT-HOURS 750 Wh
DISPLAY Bosch LED Remote + Kiox 300
SHIFTER Shimano Deore XT M8100, 12-speed
REAR DERAILLEUR Shimano Deore XT M8100, 12-speed
SPROCKET Shimano SLX M7100, 12-speed
CHAIN Shimano SLX CN-M7100, 12-speed
CRANKSET Samox EC40 ISIS
TRANSMISSION OF DRIVE Front: 36T; Rear: 10-51T
BOTTOM BRACKET Integrated in Drive Unit
HANDLEBAR RaceFace Chester 35, aluminium, 780 mm, rise: 35 mm, backsweep: 8°
STEM FOCUS C.I.S. integrated, 50 mm, 0°, 35 mm, aluminium
HEADSET ACROS ZS56/ZS60 (ICR), FOCUS C.I.S. Integrated angle headset
SADDLE Proxim W350
SEATPOST Post Moderne dropper post PM-214, 34.9 mm
BRAKE CALIPER Shimano XT M8120, 4 piston
BRAKE LEVER Shimano XT M8120, 4 piston
BRAKE Disc
WHEELSET DT SWISS H1900, 30-622, 15x110 mm / 12x148 mm
TIRES MAXXIS Minion DHF, 2.6 EXO+ / MAXXIS MINION DHRII, 2,6 EXO+
GEARS 12
BIKE WEIGHT INCL. BATTERY IN KG 25.7
SIZE S, M, L, XL



Speed limit for e-support in New Zealand is 32 km/h. Our e-bikes are adjusted accordingly.

* Subject to technical modification without notice. Errors and omissions excepted.

** Weight in size M, of standard specification and without pedals.
