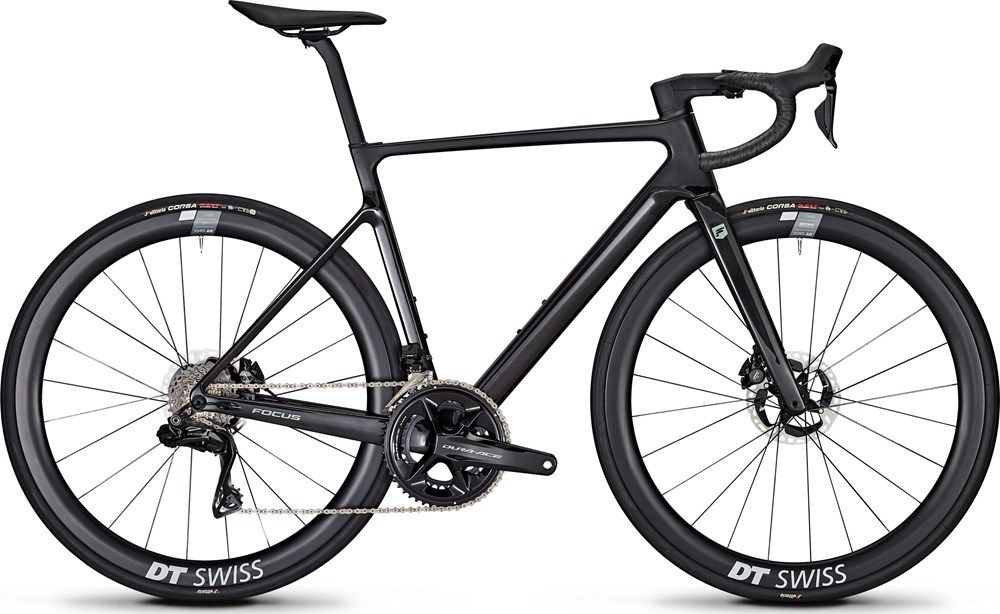

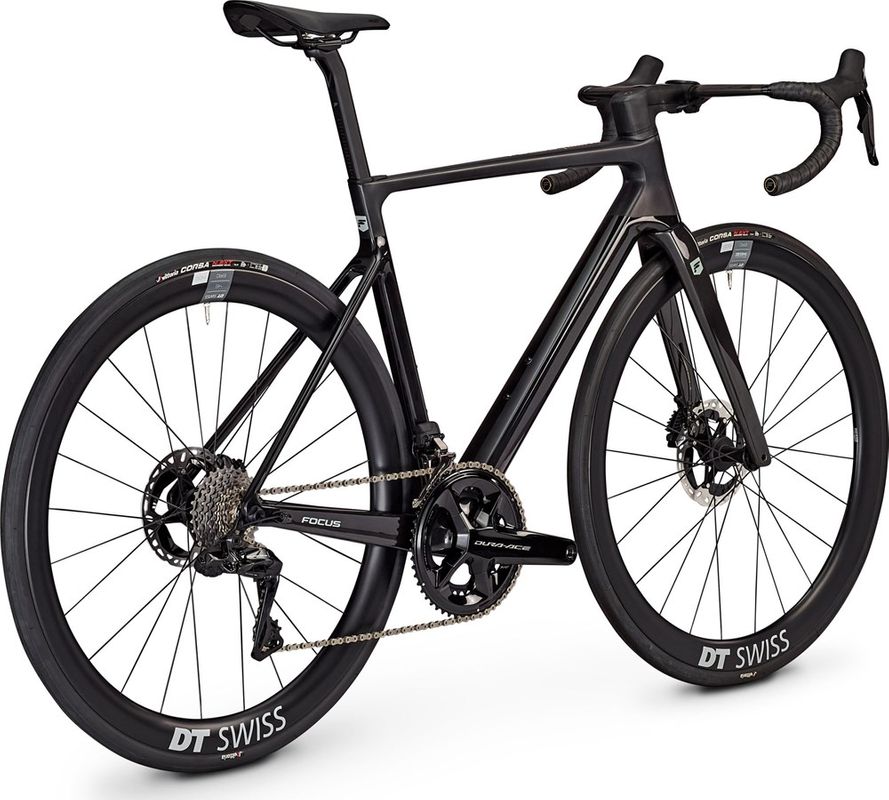

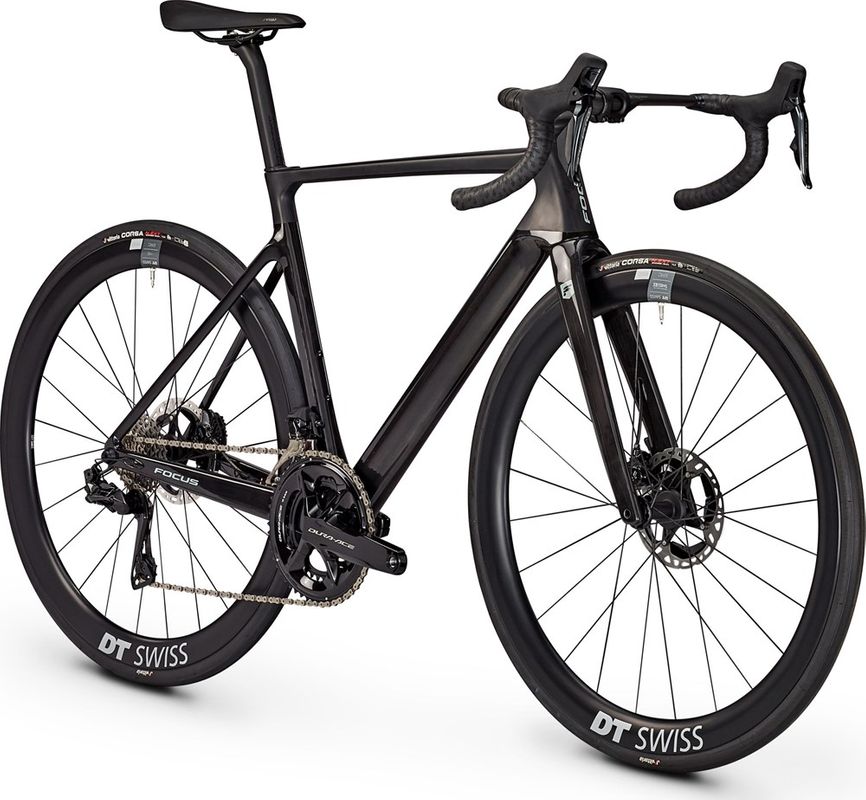

2024 Focus IZALCO MAX DISC 9.9 Dura-Ace Di2

Description

  • MAX AERO CARBON FRAME (865 G)
  • ELECTRONIC SHIMANO DURA-ACE DI2 2X12 SHIFTING
  • DT SWISS ERC1400 CARBON WHEELS

MAKES YOU FASTER

AERO GAINS

The refined and wind tunnel-approved NACA-shapes (National Advisory Committee for Aeronautics) make our frame highly aerodynamic. At the same time, the frame only weighs 865 g for frame size M with an additional 400 g for the fork. Our C.I.S. road stem hides the cables below the stem. It also comes with an integrated bike computer mount for both Wahoo and Garmin.

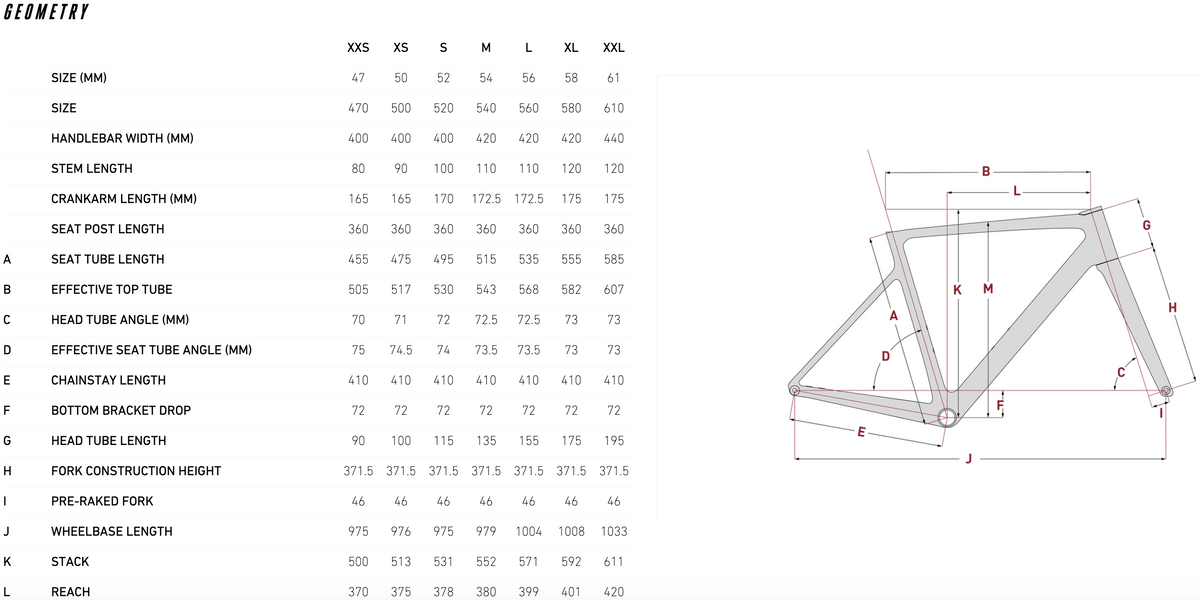

7 SIZES FOR A PERFECT FIT

The IZALCO MAX is available in seven sizes. In combination with the stem, which we offer in six lengths from 70 to 120 mm, it really does have all the sizes for each and every one of you.

EFFORTLESS HANDLING AND MAXIMUM STIFFNESS

To enable you to get that extra power on the road, the bottom bracket is optimised for stiffness, and the fork for lateral stiffness. Together with a bold geometry for easier cornering, especially at high speeds, the IZALCO MAX is the road bike for all ambitions.

SPECIFICATIONS

FRAME MATERIAL Carbon
FRAME MAX technology carbon, disc, BB86, 142x12 mm thru axle, flat mount 160/140 mm, internal cable routing
FORK MAX technology carbon, integrated cable routing, disc, 100x12 mm, flat mount
SHIFTER Shimano Dura-Ace Di2 R9250, 12-speed
FRONT DERAILLEUR Shimano Dura-Ace Di2 R9250, 12-speed
REAR DERAILLEUR Shimano Dura-Ace Di2 R9250, 12-speed
SPROCKET Shimano Dura-Ace CS-R9200, 12-speed
CHAIN Shimano XTR CN-M9100, 12-speed
CRANKSET Shimano Dura-Ace R9250, 12-speed
TRANSMISSION OF DRIVE Front: 52/36T | Rear: 11-30T
BOTTOM BRACKET Shimano Pressfit Road BB86
HANDLEBAR Easton EC70 Aero, carbon
Drop: 125 mm, Reach: 80 mm
STEM FOCUS C.I.S. 2.0 integrated, 31.8 mm, aluminium, with Garmin / Wahoo-Mount
HEADSET ACROS IS 52/286-IS52/40 (ICR), FOCUS integrated C.I.S.
SADDLE fi'zi:k Vento Argo R5
SEATPOST FOCUS Aero Carbon, D-shape, 350 mm
Setback: 15 mm
BRAKE CALIPER Shimano BR-R9270
BRAKE LEVER Shimano Dura-Ace Di2 R9270
BRAKE Disc
WHEELSET DT Swiss ERC1400, carbon, 622-22, 12x100 mm / 12x142 mm, 45 mm height
TIRES Vittoria Corsa, Next TLR, 28-622, Folding
GEARS 24
BIKE WEIGHT IN KG. 7.20 kg
SIZE XXS, XS, S, M, L, XL, XXL



* Subject to technical modification without notice. Errors and omissions excepted.

** Weight in size M, of standard specification and without pedals.
