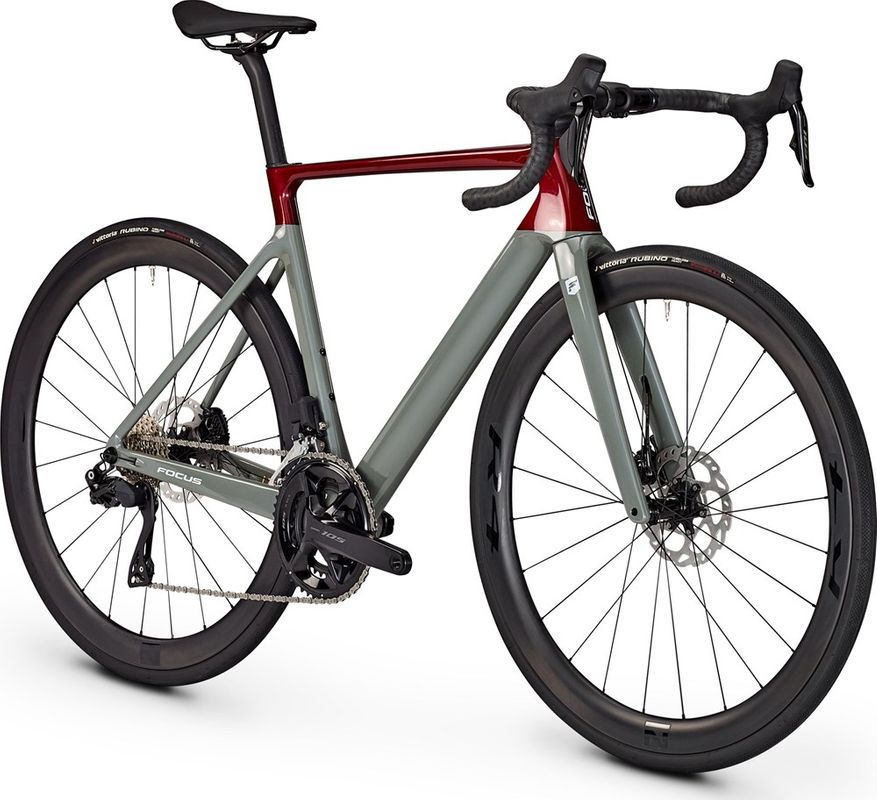

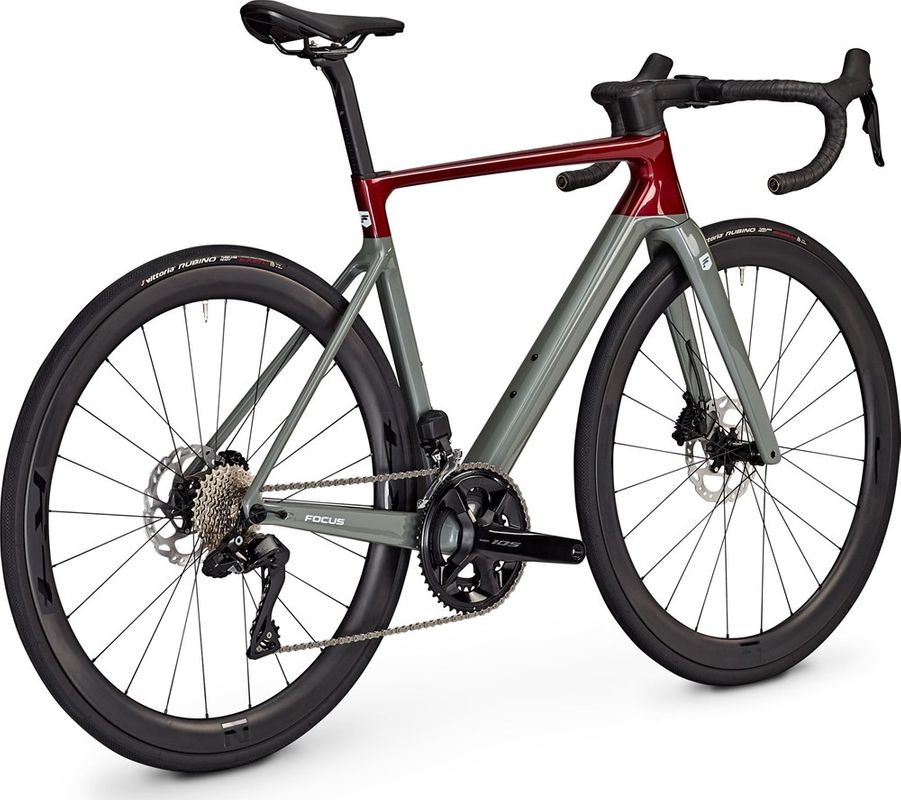

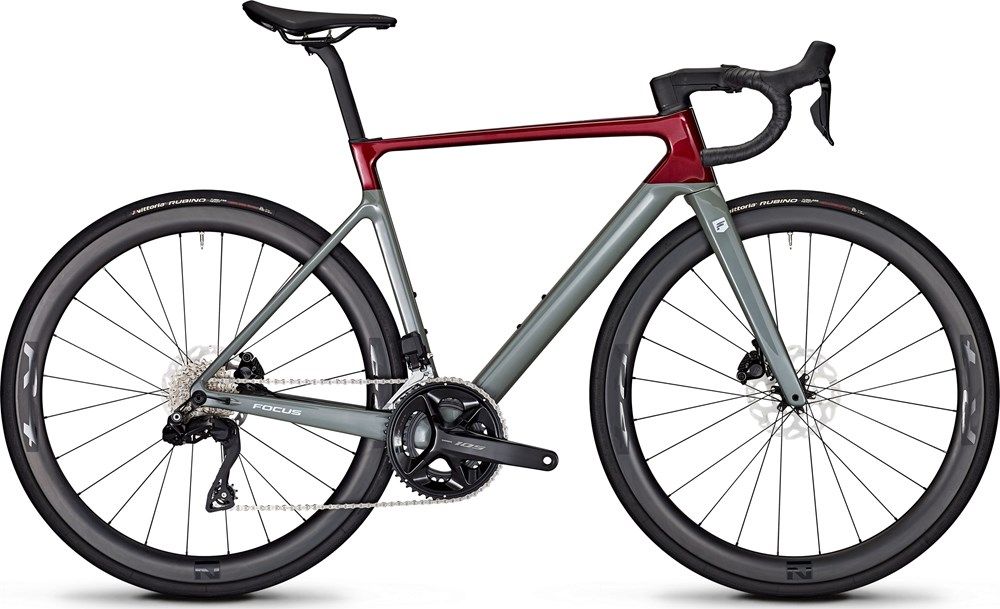

2024 Focus IZALCO MAX DISC 8.9 105 Di2

Description

  • AERO CARBON FRAME (1,050 G)
  • ELECTRONIC SHIMANO 105 DI2 2X12 SHIFTING
  • NOVATEC R4 CARBON WHEELS

MAKES YOU FASTER

AERO GAINS

The refined and wind tunnel-approved NACA-shapes (National Advisory Committee for Aeronautics) make our frame highly aerodynamic. At the same time, the frame only weighs 1050 g for frame size M with an additional 400 g for the fork. Our C.I.S. road stem hides the cables below the stem. It also comes with an integrated bike computer mount for both Wahoo and Garmin.

7 SIZES FOR A PERFECT FIT

The IZALCO MAX is available in seven sizes. In combination with the stem, which we offer in six lengths from 70 to 120 mm, it really does have all the sizes for each and every one of you.

EFFORTLESS HANDLING AND MAXIMUM STIFFNESS

To enable you to get that extra power on the road, the bottom bracket is optimised for stiffness, and the fork for lateral stiffness. Together with a bold geometry for easier cornering, especially at high speeds, the IZALCO MAX is the road bike for all ambitions.

SPECIFICATION

FRAME MATERIAL Carbon
FRAME Carbon technology frame, disc, BB86, 142x12 mm thru axle, flat mount 160/140 mm, internal cable routing
FORK MAX technology carbon, integrated cable routing, disc, 100x12 mm, flat mount
SHIFTER Shimano 105 R7150 Di2, 12-speed
FRONT DERAILLEUR Shimano 105 R7150 Di2
REAR DERAILLEUR Shimano 105 R7150 Di2, 12-speed
SPROCKET Shimano Ultegra CS-R8100, 12-speed
CHAIN Shimano Deore CN-M6100, 12-speed
CRANKSET Shimano 105 R7100
TRANSMISSION OF DRIVE Front: 50/34T | Rear: 11-30T
BOTTOM BRACKET Shimano Pressfit Road BB86
HANDLEBAR BBB Basic, aluminium
Drop: 125 mm, Reach: 70 mm
STEM FOCUS C.I.S. 2.0 integrated, 31.8 mm, aluminium, with Garmin / Wahoo-Mount
HEADSET ACROS IS 52/286-IS52/40 (ICR), FOCUS integrated C.I.S.
SADDLE Selle Royal Groove SRX
SEATPOST FOCUS Aero Carbon, D-shape, 350 mm
Set-back: 15 mm
BRAKE CALIPER Shimano 105 R7170
BRAKE LEVER Shimano 105 R7170 Di2
BRAKE Disc
WHEELSET Novatec R4, carbon, 21-622, front: 12x100 mm, rear: 12x142 mm
Height: 45 mm
TIRES Vittoria Rubino TLR, 700 x 28C, Folding
GEARS 24
SIZE XXS, XS, S, M, L, XL, XXL






* Subject to technical modification without notice. Errors and omissions excepted.

** Weight in size M, of standard specification and without pedals.
