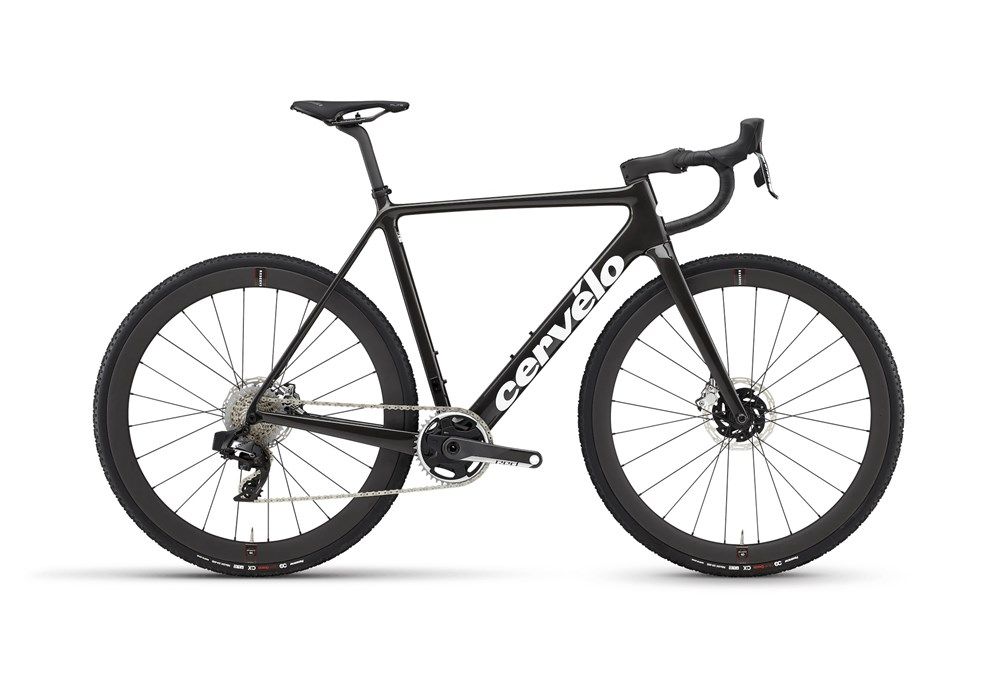

2023 Cervelo R5-CX Red eTap AXS

Description

WORLDS WINNER

Marianne Vos and Wout van Aert lit up courses from Namur to Zolder in the winter of 2021, culminating in Marianne’s dominant performance at World Championships in Fayettevile, USA. Vos and van Aert have a dozen World, European, and National titles between the two of them, and know a thing or three about cyclocross racing. We used their input to perfect every detail of the R5-CX—just ask the 2023 World Champ, Fem van Empel.

PUTTING THE W IN WATERLOO

The R5-CX debuted on the World Cup under Marianne Vos with a commanding win at Waterloo followed by another top step in Iowa. It has since added 13 wins under both Vos and van Aert, including National and Worlds titles.

INSPIRED BY THE R5, BUT A BIKE ALL ITS OWN

You might recall that this isn’t our first ‘cross bike. In 2007, we made two R3 Cross frames for Jonathan Page, one of which he rode straight to being the first American on a World Cup Podium. Like the R3 Cross, the R5-CX draws much of its performance and design from the R5, but with some key differences. The handling and fit are unique to this model, and based on Wout and Marianne’s input. And while we’ve kept the asymmetric cups of BBRight, we've threaded them into a T47-sized hole. While a unique-to-us implementation, it uses standard inboard and outboard T47 cups.

THE ULTIMATE CX FRAME

The D-shaped seat post (with double clamps, stock), not only adds compliance but was a specific request from Wout and Marianne to keep the saddle facing forward in the event of a crash. All cables route internally, and the frame is only compatible with electronic drivetrains to limit grit and water ingress. There's gobs of clearance for gobs of mud, and it’ll be available in four sizes—51, 54, 56, and 58cm.

FORK Cervélo All-Carbon, Tapered R5CX Fork
HEADSET FSA IS2 1-1/4 x 1-1/2
STEM Cervélo ST31 Carbon
HANDLEBAR Cervélo HB13 Carbon, 31.8mm clamp
SEATPOST Cervélo SP24 Carbon
SADDLE Selle Italia Flite Boost SuperFlow Carbon
SHIFTERS SRAM Red AXS, 12 speed
BRAKE CALIPERS SRAM Red
BRAKE ROTOR SRAM CLX R Centerlock
REAR DERAILLEUR SRAM Red AXS, 12 speed
CASSETTE SRAM Red, 10-33, 12 Speed
CHAIN SRAM Red, 12 speed
CRANKSET SRAM Red 1 AXS, 40T, DUB, with power meter
BOTTOM BRACKET SRAM DUB Ceramic, T47 BBright
WHEELS Rear: Reserve 44, 25mm IW, Zipp ZR1 SS,12x142mm, XDR freehub, 24H, centerlock, tubeless compatible
Front: Reserve 40, 25.5mm IW, Zipp ZR1 SS, 24H, centerlock, tubeless compatible
THRU AXLES Cervelo Aero Thru-Axles, 12x100/142
TIRES Panaracer CGCX TLC 700x33c
MAX TIRE WIDTH (ACTUAL) 41mm
ACCESSORIES Cervelo Faceplate Front Computer/Accessory Mount, Cervelo Rear Accessory Mount

Code Product Name Stock Your Price Quantity
N0I0CXARX1C51
Cervelo NC23 R5-CX Red eTap AXS Five Black 51
Stock Level:
Please Enquire
Contact your local dealer for pricing and availability
N0I0CXARX1C54
Cervelo NC23 R5-CX Red eTap AXS Five Black 54
Stock Level:
Please Enquire
Contact your local dealer for pricing and availability
N0I0CXARX1C56
Cervelo NC23 R5-CX Red eTap AXS Five Black 56
Stock Level:
Please Enquire
Contact your local dealer for pricing and availability
N0I0CXARX1C58
Cervelo NC23 R5-CX Red eTap AXS Five Black 58
Stock Level:
Please Enquire
Contact your local dealer for pricing and availability
