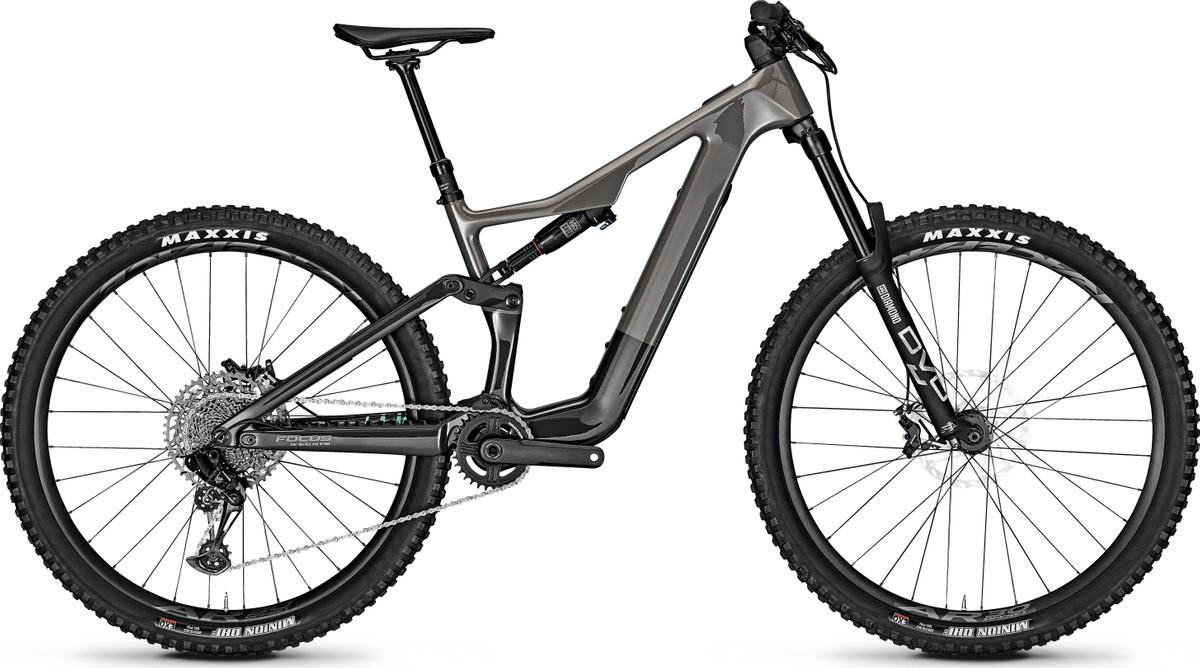

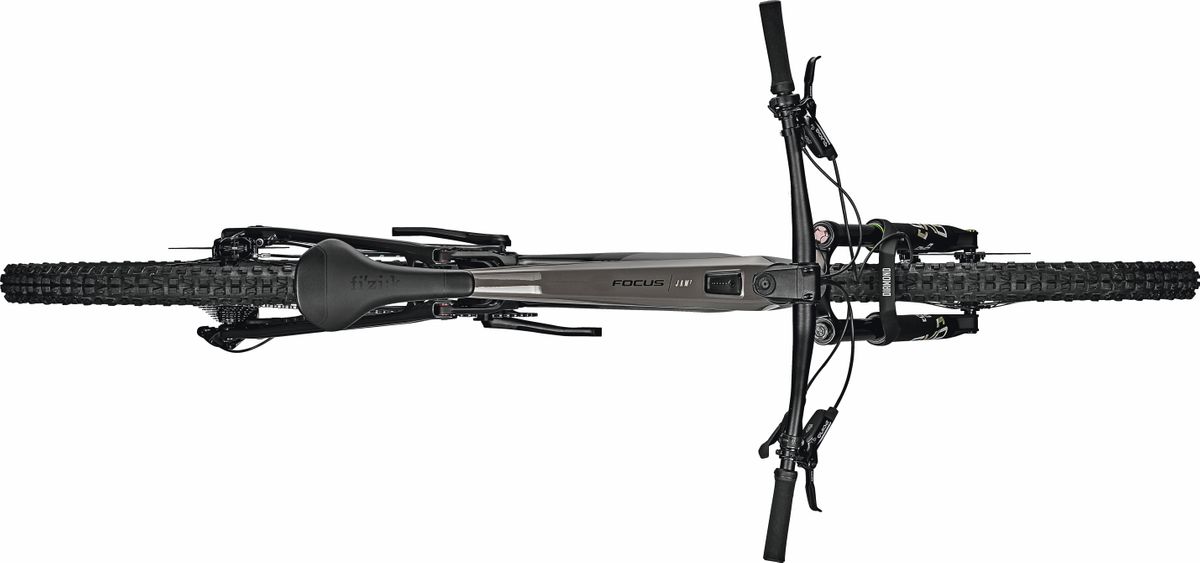

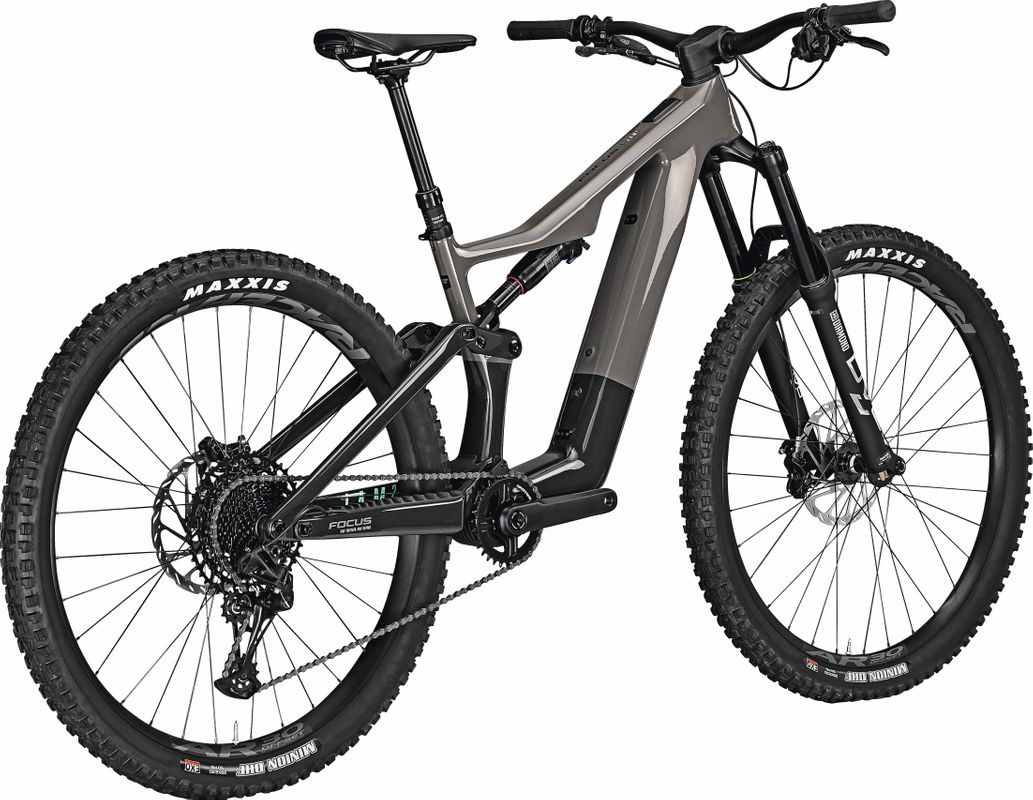

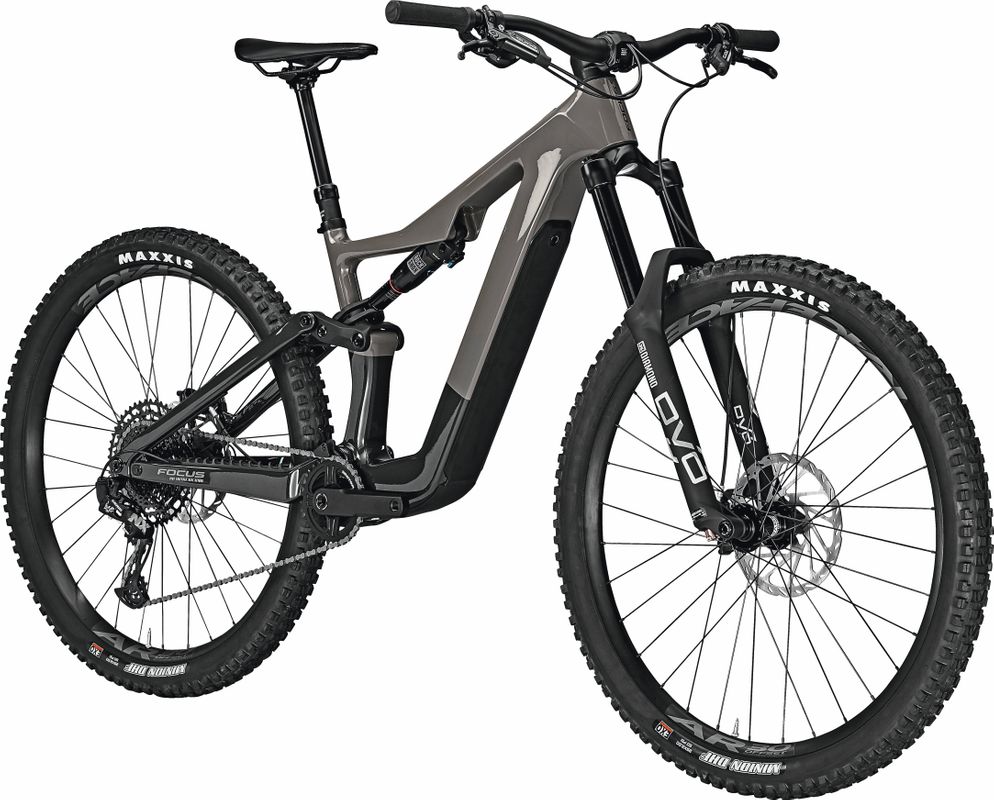

2023 Focus JAM2 SL 8.7 FAZUA 45kph

Description

  • CARBON FRAME WITH FAZUA RIDE 60 E-DRIVE & 430 WH BATTERY
  • 160 MM DVO DIAMOND FORK & 150 MM ROCKSHOX DELUXE SELECT+ SHOCK
  • SRAM NX EAGLE 1X12
  • MAXIMUM ASSISTANCE UP TO 45KM/H

MERGES THE BEST OF TWO WORLDS

NIMBLE AND LIGHT PURE BIKE CHARACTERISTICS

The JAM² SL 8.7 is the perfect entry bike into the world of light e-MTB and ready for every trail. The full-carbon frame optimises the weight without compromising on stiffness and usability. The top tube is designed in the most radical and minimalist way. Thanks to the shock semi-integration, the JAM² SL 8.7 has a low stand-over height that gives you generous space for moving. Still, all parts to adjust your shock settings are easy to reach. As the motor and battery of our JAM² SL 8.7 are fully integrated in the down tube, this e-MTB not just rides but also looks like a pure bike.

SUPPORT POWER OF AN E-BIKE

The FAZUA Ride 60 drive unit provides the feeling of a natural ride but still has got your back on all climbs. The compact and light, yet powerful system has 60 Nm torque and a maximum power output of 450 W. If you need an extra push, the boost function helps you to tackle even the steepest sections. Thanks to the high efficiency of the FAZUA system and a battery with 430 Wh, your ride won't stop before reaching your very own Rider's High. If you really need even more, adding a range extender offers you further 210 Wh. The drive system already features three different riding modes. On top, you can individualize the motor support based on your riding preferences via the FAZUA App. It allows you to set Max Power, Support Relation and Ramp-up according to your own personal needs.

ADJUSTABLE GEOMETRY AND ADAPTED KINEMATICS

The JAM² SL 8.7 features two points to adjust your geometry: the head angle and the chainstay length. The steeper head angle of 65,5° results in a more agile handling of the bike, while the slack position of 64,5° gives it a more downhill-oriented setting. Switching the FLIP CHIPs and adjusting your chainstay length from 440 to 447 mm changes the whole set-up of your bike. With longer chainstays, the JAM² SL 8.7 rides more stable and makes steep climbs easier, whereas the short setting leads to a more agile geometry. For the JAM² SL 8.7, we adapted our F.O.L.D. (FOCUS Optimised Linkage Design) and reduced the amount of linkage parts resulting in a significant weight loss. The updated kinematic design reduces brake influences and gives you maximum control of your bike in every situation.

FRAME Carbon technology frame, 150mm F.O.L.D. GEN3 kinematics, 148x12 thru axle, internal cable routing, Post Mount 180 mm
FORK DVO Diamond E3, 110x15 mm, 44 mm rake
TRAVEL OF SUSPENSION FORK 160 mm
SHOCK Rock Shox Deluxe Select+, 210/55 mm, hardware: 25,0 x 8.0 mm, no Bushing
MOTOR Fazua Ride 60, 60 Nm, 430 W max.
BATTERY WATT-HOURS 430 Wh
BATTERY AMPERE HOURS 10 Ah
DISPLAY Fazua LED Hub + Ring Control
SHIFTER SRAM SX Eagle, 12-speed
REAR DERAILLEUR SRAM NX Eagle, 12-speed
SPROCKET SRAM NX Eagle, 12-speed
CHAIN SRAM SX Eagle, 12-speed
CRANKSET Samox EC40 ISIS
TRANSMISSION OF DRIVE Front: 32T, Rear: 11-50T
BOTTOM BRACKET Integrated in Drive Unit
HANDLEBAR Aluminium, 800 mm, rise: 30 mm, backsweep: 9°
STEM FOCUS C.I.S. integrated, 50 mm, 0°, 35 mm, aluminium
HEADSET ACROS ZS56/ZS56 (ICR), FOCUS C.I.S. Integrated, 1.5/1.5" angle headset
SADDLE fi'zi:k Taiga
SEATPOST Post Moderne dropper post PM-MT171, 31.6 mm
BRAKE CALIPER SRAM GUIDE T
BRAKE LEVER SRAM GUIDE T
BRAKE Disc
RIMS RaceFace AR30 Offset
REAR HUB Novatec D462, 12x148 mm
FRONT HUB Novatec D041, 15x110 mm thru axle,Novatec D041, 15x110 mm
TIRES Maxxis Minion DHF, EXO, 63-622
GEARS 12
BIKE WEIGHT INCL. BATTERY IN KG 20.2
SIZE S, M, L, XL



Speed limit for e-support in New Zealand is 45 km/h. Our Fazua Motor and Battery e-bikes are adjusted accordingly.

* Subject to technical modification without notice. Errors and omissions excepted.

** Weight in size M, of standard specification and without pedals.
